JOGLでスポットライトを使用する

JOGLでスポットライトを使用するには、以下のコードを実行します。

import java.io.*;
import javax.media.opengl.*;
import com.sun.opengl.util.*;

public class JoglSample53
{
    // 出力画像サイズ
    private static int width = 300;
    private static int height = 300;

    public static void main(String args[])
        throws IOException
    {
        GLDrawableFactory gldf =
            GLDrawableFactory.getFactory();
        GLCapabilities glc = new GLCapabilities();
        glc.setDoubleBuffered(false);
        GLPbuffer buf = gldf.createGLPbuffer(
           glc, null, width, height, null);

        buf.addGLEventListener(
            new GLEventListener(){
            // 初期化
            public void init(GLAutoDrawable dr)
            {
                GL gl = dr.getGL();
                // 背景色
                gl.glClearColor(
                    (float)0x58/(float)0xff,
                    (float)0x50/(float)0xff,
                    (float)0x50/(float)0xff,
                    1f);
            }

            public void display(GLAutoDrawable dr)
            {
                GL gl = dr.getGL();
                GLUT glut = new GLUT();
                gl.glViewport(0, 0, width, height);

                // 透視投影
                gl.glMatrixMode(GL.GL_PROJECTION);
                gl.glLoadIdentity();
                float ratio = (float)height/(float)width;
                gl.glFrustum(-1.0f, 1.0f, -ratio, ratio,
                    5.0f, 40.0f);

                gl.glMatrixMode(GL.GL_MODELVIEW);
                gl.glLoadIdentity();
//                gl.glTranslatef(0.0f, -0.5f, -30.0f);
                gl.glTranslatef(-3.0f, -1.5f, -7.0f);

                gl.glEnable(GL.GL_LIGHTING);
                gl.glEnable(GL.GL_LIGHT0);
                gl.glEnable(GL.GL_LIGHT1);
                gl.glEnable(gl.GL_COLOR_MATERIAL);
                gl.glEnable(GL.GL_NORMALIZE);
                gl.glEnable(GL.GL_AUTO_NORMAL);
                gl.glEnable(GL.GL_DEPTH_TEST);
                gl.glEnable(GL.GL_CULL_FACE);


                // フォグの設定
                float fog[]={0.2f,0.2f,0.3f,1.0f};
                gl.glFogfv(GL.GL_FOG_COLOR,fog,0);
                gl.glFogi(GL.GL_FOG_MODE,GL.GL_EXP);
                gl.glFogf(GL.GL_FOG_DENSITY, 0.04f);
                gl.glFogf(GL.GL_FOG_START, 0.0f);
                gl.glFogf(GL.GL_FOG_END,20.0f);
                gl.glEnable(GL.GL_FOG);

                // 光源の位置
                float l0pos[] = {-5.0f, 5.0f, 0.0f, 1.0f};
                gl.glLightfv(GL.GL_LIGHT0, GL.GL_POSITION, l0pos, 0);
                // 環境光
                float l0amb[] = {0.1f, 0.1f, 0.1f, 1.0f};
                gl.glLightfv(GL.GL_LIGHT0, GL.GL_AMBIENT, l0amb, 0);
                // 拡散光
                float l0dif[] = {0.2f, 0.2f, 0.2f, 1.0f};
                gl.glLightfv(GL.GL_LIGHT0, GL.GL_DIFFUSE, l0dif, 0);
                // 鏡面光
                float l0spe[] = {0.3f, 0.3f, 0.3f, 1.0f};
                gl.glLightfv(GL.GL_LIGHT0, GL.GL_SPECULAR, l0spe, 0);



                // 光源の位置
                float l1pos[] = {3.0f, 4.0f, -5.0f, 1.0f};
                gl.glLightfv(GL.GL_LIGHT1, GL.GL_POSITION, l1pos, 0);
                // 環境光
                float l1amb[] = {0.2f, 0.2f, 0.1f, 1.0f};
                gl.glLightfv(GL.GL_LIGHT1, GL.GL_AMBIENT, l1amb, 0);
                // 拡散光
                float l1dif[] = {0.5f, 0.5f, 0.3f, 1.0f};
                gl.glLightfv(GL.GL_LIGHT1, GL.GL_DIFFUSE, l1dif, 0);
                // 鏡面光
                float l1spe[] = {0.8f, 0.8f, 0.2f, 1.0f};
                gl.glLightfv(GL.GL_LIGHT1, GL.GL_SPECULAR, l1spe, 0);
                // スポットライト
                float l1dir[] = {0.1f, -1.0f, 0.0f};
                gl.glLightfv(GL.GL_LIGHT1, GL.GL_SPOT_DIRECTION, l1dir, 0);
                gl.glLightf(GL.GL_LIGHT1, GL.GL_SPOT_CUTOFF, 30.0f );
                gl.glLightf(GL.GL_LIGHT1, GL.GL_SPOT_EXPONENT, 5.0f );

                gl.glClear(GL.GL_COLOR_BUFFER_BIT
                    |GL.GL_DEPTH_BUFFER_BIT );

                // 面の色を設定
                gl.glColor3f(
                    (float)0x77/(float)0xff,
                    (float)0x99/(float)0xff,
                    (float)0xff/(float)0xff
                );

                // X軸回転
                gl.glRotatef(15.0f, 1.0f, 0.0f, 0.0f);
                // Y軸回転
                gl.glRotatef(35.0f, 0.0f, 1.0f, 0.0f);

                float cs = 0.4f;
                float gs = 0.5f;
                int xs = 100;
                int zs = 100;
                for(int lz=-3;lz<zs;lz++){
                    for(int lx=-3;lx<xs;lx++){
                        gl.glColor3f(
                          (float)0xff/(float)0xff,
                          (float)0xff/(float)0xff,
                          (float)0xff/(float)0xff
                        );
                        gl.glPushMatrix();
                        float ch = cs * (float)(Math.random()*1.0);
                        gl.glScalef(1f,ch, 1f);
                        gl.glTranslatef(lx*gs, -(cs-ch)/2, -1*lz*gs);
                        glut.glutSolidCube(cs);
                        gl.glPopMatrix();
                    }
                }
            }

            public void reshape(
                GLAutoDrawable dr,
                int x, int y,
                int width, int height){}

            public void displayChanged(
                GLAutoDrawable dr,
                boolean modeChanged,
                boolean deviceChanged){}
          }
        );

        GLContext context =  buf.createContext(null);
        context.makeCurrent();
        buf.display();
        Screenshot.writeToFile(
            new File("sample1211a.png"), width, height, true);
        context.release();
        context.destroy();
    }
}

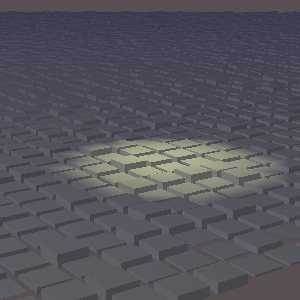

出力画像(sample1211a.png)
